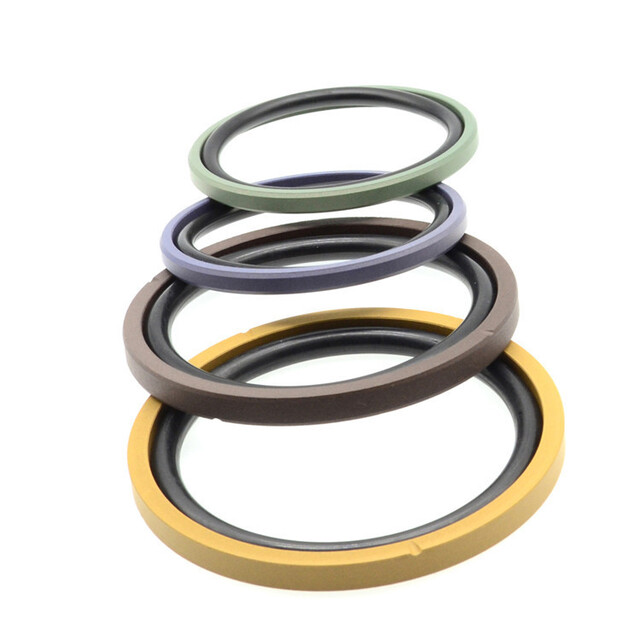

Hydraulic piston seals SPGO
Material:Filled PTFE+ NBR Working condition:Max speed:5m/s Max pressure:40 Mpa Temperature range:-30~200℃
SPGO is a standard compact seal for wide application.Same properties with SPG.
Hydraulic piston seals SPGW
Material:ptfe+teflon+pu+nbr Working condition: Max speed:1.5m/s Max pressure:50 Mpa Temperature range:-30~100℃
SPGW is for reciprocated hydraulic systems.Possessing excellent performance if applied at heavy load and double sealing under high pressure working conditions.Particularly suitable for long stroke,large range of fluids and high temperature circumstance.Applicable for bigger piston gap.Simple groove structure.
Hydraulic piston seals SPGA
Material:Filled PTFE+ NBR Working condition:Max speed:5m/s Max pressure:40 Mpa Temperature range:-30~100℃
SPGA is a double acting seal capable of passing over port.
The Nylon sealing face has a step-cut joint for ease of installation.It composed a rubber energizer.
Hydraulic piston seals OK for Volvo
Material:Nylon+ NBR Working condition: Max speed:5m/s Max pressure:40 Mpa Temperature range:-30~100℃
SPGA is a double acting seal capable of passing over port.
The Nylon sealing face has a step-cut joint for ease of installation.It composed a rubber energizer.
Hydraulic piston seals SPG
Material:Filled PTFE+ NBR Working condition: Max speed:3m/s Max pressure:40 Mpa Temperature range:-30~100℃
SPG is standard compact seal for widely application,working in the piston.
Hydraulic piston seals DAS
Material:NBR/FKM+PU+POM/NY Working condition: Max speed:0.5 m/s Max pressure:35 Mpa Temperature range:-30~100℃
Hydraulic piston seals OUY
Material:NBR/NYLON+PU/NBR+POM Working condition:Max speed:0.5 m/s Max pressure:20 Mpa Temperature range:-45~100℃
Hydraulic rod seals IDI/PTB MPI/MPS
Material:PU+NBR Working condition:Max speed:0.5 m/s Max pressure:40 Mpa Temperature range:-35~110℃
HBY combined with rod seals,to absorb impact and srge pressure under heavy load in order to separate high temperature fluids and improve the service life of the seal element.
Material:PU+NY Working condition:Max speed:0.5 m/s Max pressure:21 Mpa Temperature range:-45~110℃
Hydraulic rod seals SPN
Description:SPN has same properties with HBTS. Applied to high pressure and high sliding speed conditions.
Material:NBR+Filled PTFE Working condition: Max speed:3 m/s Max pressure:35 Mpa Temperature range:-45~110℃
Hydraulic rod seals HBTS
HBTS is for reciprocated hydraulic system,prossessing excellent performance in high,medium and low pressure and in high load,high frequency conditions,especially suitable for long stroke,applied to bigger rod diameter in fluids and under high pressure.
Material: NBR+Filled PTFE Working condition:Max speed:3 m/s Max pressure:35 Mpa Temperature range:-30~110℃
Hydraulic rotary seals GRS
Material:Elastomer+Filled PTFEWorking condition:Max speed:3 m/s Max pressure:35 Mpa Temperature range:-30~200℃
Hydraulic rotary seals ROI
ROI has same properties with SPN. Applied to high pressure and high sliding speed conditions.
Material:PUWorking condition:Max speed:0.3 m/sMax pressure:28MpaTemperature range:-30~100℃
Hydraulic Wiper seals DKB
DKB is for reciprocated,swing or rotating sealing system.excellent scraping effect,wear resistant,long service life
Material:NBR+ironWorking condition:Max speed:0.5 m/s
Hydraulic Wiper seals DKBI
Description: DKBI is for reciprocated,swing or rotating sealing system.excellent scraping effect,wear resistant,long service life
Material:PU+ironWorking condition:Max speed:0.5 m/s
Hydraulic Wiper seals GSZ
GSZ is for reciprocating system,especially in low friction,high frequency and heavy load condition.
Material:Filled PTFE+Elastomer Working condition: Max speed:3 m/s
Hydraulic Bearing guidance seals wearing ring
WR is nometallic guiding and positioning element,excellent compression resistant and wear resisitance,high load performance and still flexible before it reaches its brittleness temperature.also easy in installation.
Working condition: Max speed:1 m/sTemperature range:-45~120℃ Material :Phenolic resin
Hydraulic Bearing guidance seals RYT
Bearing rings of piston,prevent the piston from scratching,improve durability of seals.PTFE can eliminate crawling.It can be cut according to the cylinder Diameter.
Working condition:Max speed:5 m/s Temperature range:-45~200℃ Material :PTFE
Hydraulic Bearing guidance seals KZT
KZT is combined with piston seal ring and anti-wear ring,this product with the anti-wear and piston ring seals used in combination to prevent the cylinder oil from mixed with foreign particles and cause damage to the seals and to ensure that the seasl have a long service life.the piston rod seals,used in combine with the metal bushing,prevent damage to the rods as a result of PTFE’s impurity submerge function.
Working condition: Max speed:5 m/s Material :PTFE+Bronze
Hydraulic Bearing gasket N4W
Working condition:Material :Nylon/POM Hydraulic Bearing gasket BRT
Working condition: Material :PTFE+bronze
Excavator seals kit
KOMATSU,CATERPILLAR,HITACHI,SUMITOMO,KOBELCO,DOOSAN,KATO,HYDUNDAI,DAEWOO,VOLVO,SANY,LIUGONG,YUCHAI.Et
